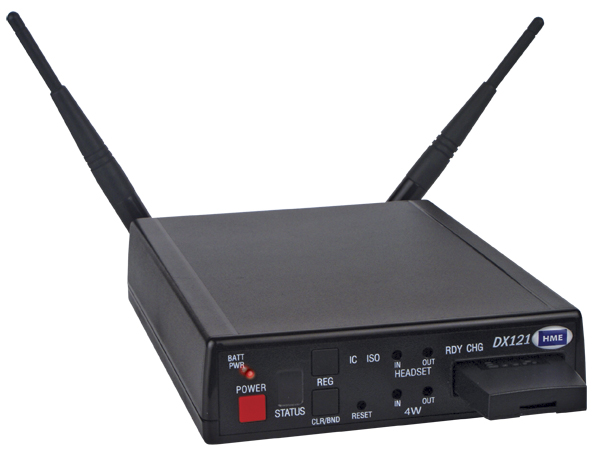

DX 121 one to one
HME 2,4GHz Duplex Funkintercom System.
Abhörsichere digitale Funkkommunikation zwischen der Minibasisstation (BS121)
und einer mobilen Station (BP200 oder WH200 /WS200).
Die Basisstation BS121 hat eine eingebaute Ladestation für das Batteriepack (BP40)
welche in den mobilen Funkstationen verwendet werden.
(BP200/WH200 enthalten bereits 2 x BP200)
Sie brauchen also nur noch ein Hörsprechgarnitur (nur zum BP200) und schon
haben Sie ein 1-to-1 Funkintercomsystem.
Die zu ladende Batterie im BS121 dient gleichzeitig als backup-Batterie für das
BS121 für 30 Minuten Betrieb bei Netzausfall.
Es können 4 Mobile Stationen (BP200/WS200/WH200) an die BX121 angemeldet werden aber
nur 1 kann gleichzeitig sprechen, 3 hören aber gleichzeitig!
Die Minibasisstation lässt sich in alle handelsüblichen Intercomsysteme integrieren.
Entsprechende Anschlüsse sind vorhanden!
Ausbaubar, Kostengünstig, Lizenzfrei (2,4GHz), legal, Abhörsicher, rauschfrei, voll Duplex. Genial!
Owners Manual HME DX121
Produktebeschrieb und Richtpreise:
 |
BS 121 one-to one wireless Intercom System with built in BAT41 Charger, PDF Datasheet CZ12027 |
SFr. 2'702.80 |
| Typ | Beschreibung | Verkaufspreis in CHF inkl. 8% MwSt. |
|---|---|---|
|
DX121 System mit 1 Beltpack BP200, 2 Akku BAT40 & 1 Headset (HS14) Eingebauter Battery Charger |
SFr. 4'123.85 |
|
DX121 System mit 1 Comlink WH200, 2 Akku BAT44 Eingebauter Battery Charger |
SFr. 3'887.00 |
New product: one to one system
DX121 One-to-One Wireless Intercom System. The DX121 features the new BS121 base station with built-in charger for a single BAT41. The DX121 allows users to connect directly to any headset position on any hardwired intercom station or beltpac. It also has four-wire connectivity and a programmable relay for actuating a two-way radio or adding functionality when connected to a digital matrix intercom. The DX121 supports a single hands-free user and up to four users in push to transmit (PTT) mode. It can be packaged with any of the existing DX100 and DX200 Series remotes. The DX121 is ideal for the applications requiring a simple and affordable wireless system, yet can be packaged for multi-channel applications with up to eight systems operating in the same location. The DX121 can also assist in requirements for extended coverage in a large venue, using the existing hardwire intercom as a backbone to connect DX121 and DX200 systems positioned throughout a facility. The DX121 will be available for shipment in May 09.The DX121 features the new BS121 base station with built-in charger for a single BAT41. The DX121 allows users to connect directly to any headset position on any hardwired intercom station or beltpac. It also has four-wire connectivity and a programmable relay for actuating a two-way radio or adding functionality when connected to a digital matrix intercom. The DX121 supports a single hands-free user and up to four users in push to transmit (PTT) mode. It can be packaged with any of the existing DX100 and DX200 Series remotes. The DX121 is ideal for the applications requiring a simple and affordable wireless system, yet can be packaged for multi-channel applications with up to eight systems operating in the same location. The DX121 can also assist in requirements for extended coverage in a large venue, using the existing hardwire intercom as a backbone to connect DX121 and DX200 systems positioned throughout a facility.
PDF Datasheet here!
