GX-7 x 188w Endstufe


GX-7

Description

7-channel Amplifier

Frequency Response

20Hz to 20kHz +0.1dB/-0.5dB; 10Hz to 40kHz +0.1dB/-1.5dB

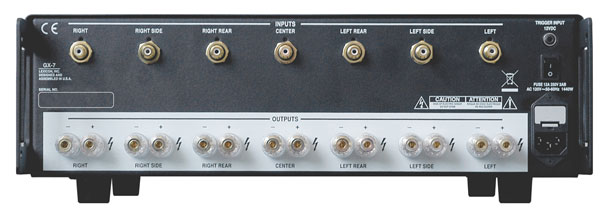

Inputs

7 RCA

Input Impedance

Minimum 10KOhms

Input Sensitivity

1V for 100W out @ 8 Ohms

Rated Output Power into 4 ohms

188W RMS per channel into 4 Ohms from 20Hz to 20kHz

Rated Output Power into 8 ohms

125W RMS per channel into 8 Ohms from 20Hz to 20kHz

Signal-to-Noise Ratio

Greater than 100dB, ref 125W/8 Ohms (30kHz bandwidth)

Total Harmonic Distortion (THD)

Less than 0.05% at full power ratings

Crosstalk

Greater than -80dB @ 1kHz (30kHz bandwidth)

Gain

Minimum 28dB

Power Requirements

120V 60Hz 12 Amp (domestic) 230V 50Hz 7 Amp (export)

Speaker Connections

7 pairs of heavy-duty, gold-plated binding posts

Included Accessories

Optional brackets are available for mounting the amplifier in a standard 19-inch equipment rack

Damping Factor

Greater than 200 @ 20Hz (ref 8 Ohms)

Weight

51 pounds (23.1 kg)

Depth

19.5-inches (including handles) 17.12-inches (not including handles)

Width

16.2"

Height:  5"
