XLR Chassis D type
| Typ |
Beschreibung
|
CHF
Pro Stück exkl. MwSt. |
|---|---|---|
|
|
AC3FDZ, XLR 3 pole female, D Flange, Stamped contacts, Nickel Finish |
SFr. 5.10
|
 |
AC3FDZB, XLR 3 pole female, D Flange, Stamped contacts, Black Finish |
SFr. 5.60
|
 |
AC3FDP, XLR 3 pole female, D Flange, Thermoplastic shell, Solder Buckets | SFr. 3.65 |
 |
AC3MMDZ, XLR 3 pole male, D Flange, Machined contacts, Nickel Finish |
SFr. 5.05
|
AC Series A and B Type XLR Chassis Mounts
The AC series, A and B type XLR chassis receptacles have been designed and manufactured with the Original Equipment Manufacturers’ (OEM) needs in mind. The compact shell design allows a significant space saving over the traditional ‘D’ type shell. Gold plated contacts improve the performance, ensuring a reliable contact and the unique grounding link options offer flexibility in design.
Grounding options:
- Ground 1 – Pin 1 to Chassis to Mating Connector Shell
- Ground 2 – Mating Connector Shell to Chassis – Pin 1 Sep. Ground
- Ground 3 – Mating Connecter Shell to Pin 1
- Ground 4 – Mating Connector Shell to Chassis to PCB, Pin 1 Sep. Ground
Male 3 Pole
| A Type / Black Finish / Horizontal PCB | ||
| No Ground Link | AC3MAH-AU-PRE | Drawing 3D |
| Ground 1 | AC3MAH1-AU-PRE | Drawing 3D |
| Ground 2 | AC3MAH2-AU-PRE | Drawing 3D |
| A Type / Black Finish / Horizontal PCB / Non-Latching / Integrated Switch | ||
| Ground 4 | AC3MAH4-SW-B | Drawing |
| A Type / Black Finish / Vertical PCB | ||
| No Ground Link | AC3MAV-AU-PRE | Drawing 3D |
| Ground 2 | AC3MAV2-AU-PRE | Drawing |
| A Type / Black Finish / Solder Contacts | ||
| No Ground Link | AC3MA-AU-B | Drawing |
| B Type / Nickel Finish / Horizontal PCB | ||

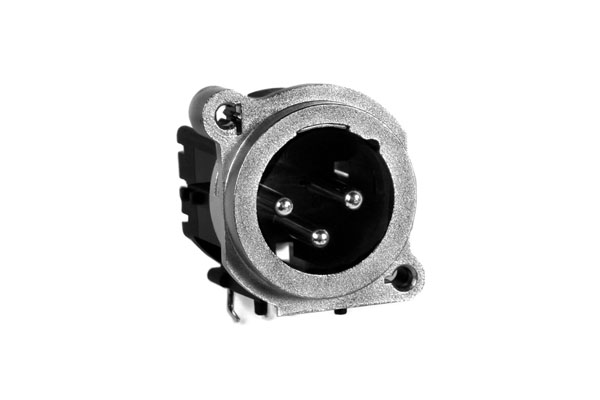

| No Ground Link | AC3MBH-AU-B | Drawing 3D |
| Ground 1 | AC3MBH1-AU-B | Drawing 3D |
| Ground 2 | AC3MBH2-AU-B | Drawing |
| Ground 3 | AC3MBH3-AU-B | Drawing |
| B Type / Nickel Finish / Horizontal PCB / Non-Latching | ||
| No Ground Link | AC3MBHL-AU-B | Drawing |
| B Type / Nickel Finish / Vertical PCB | ||
| No Ground Link | AC3MBV-AU-B | Drawing |
| Ground 1 | AC3MBV1-AU-B | Drawing |
| Ground 2 | AC3MBV2-AU-B | Drawing |
| Ground 3 | AC3MBV3-AU-B | Drawing |
| A Type / Black Finish / Horizontal PCB / Latching | ||
| No Ground Link | AC3FAH-AU-PRE | Drawing |
| Ground 1 | AC3FAH1-AU-PRE | Drawing |
| Ground 2 | AC3FAH2-AU-PRE | Drawing 3D |
| A Type / Black Finish / Vertical PCB / Non-Latching | ||
| No Ground Link | AC3FAVL-AU-PRE | Drawing |
| Ground 1 | AC3FAVL1-AU-PRE | Drawing |
| Ground 2 | AC3FAVL2-AU-PRE | Drawing |
| A Type / Black Finish / Vertical PCB / Latching | ||
| No Ground Link | AC3FAV-AU-PRE | Drawing |
| Ground 1 | AC3FAV1-AU-PRE | Drawing |
| Ground 2 | AC3FAV2-AU-PRE | Drawing |
| B Type / Nickel Finish / Horizontal PCB / Latching | ||

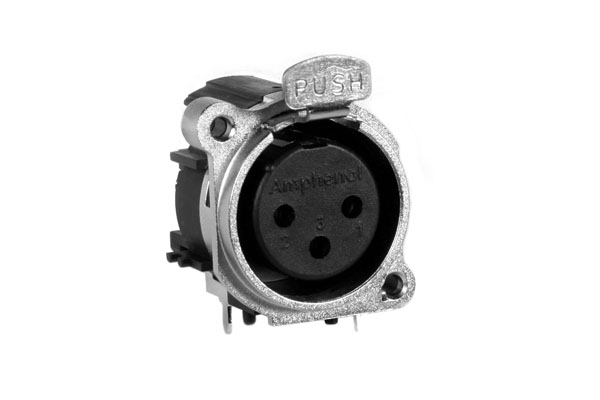

| No Ground Link | AC3FBH-AU-B | Drawing |
| Ground 1 | AC3FBH1-AU-B | Drawing |
| Ground 2 | AC3FBH2-AU-B | Drawing 3D |
| Ground 3 | AC3FBH3-AU-B | Drawing |
